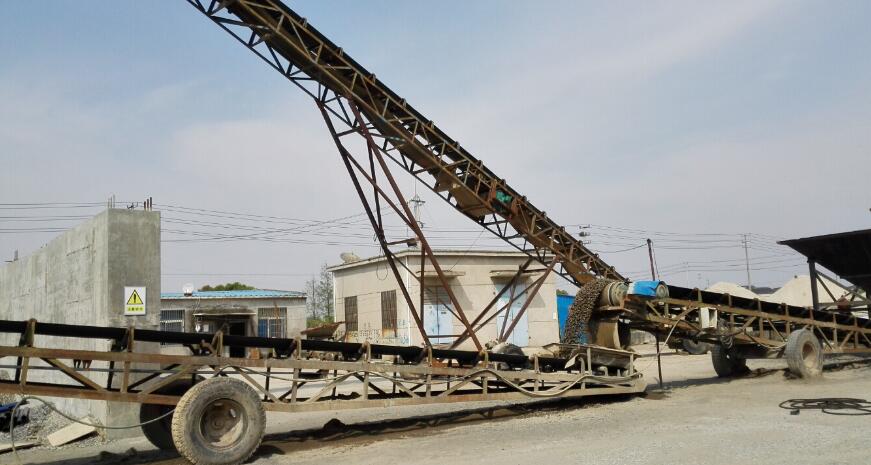

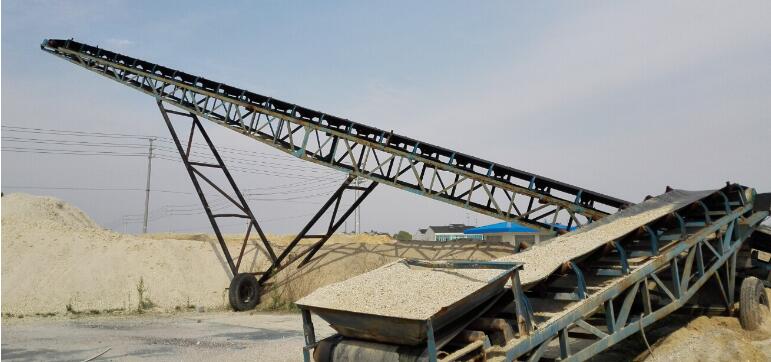

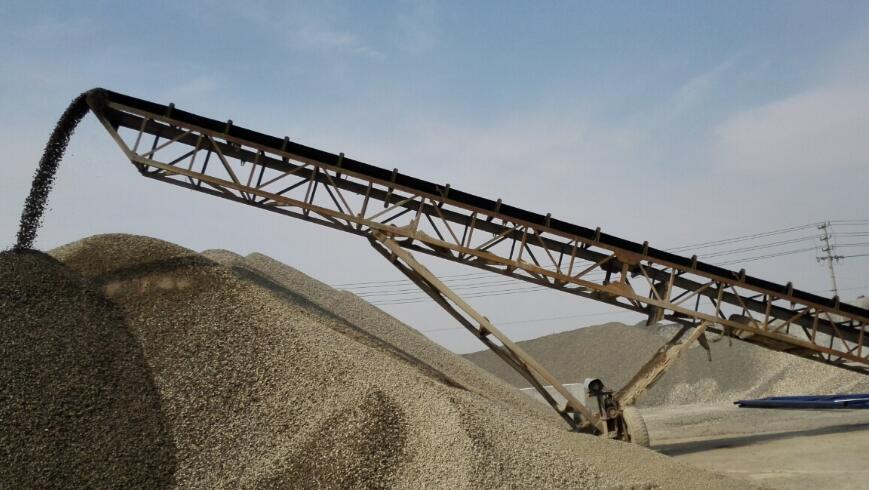

Mobile belt conveyor

Time:2016-04-18 Form:Jiangsu Wuyun Hit:2655

/

Use and scope of application

Mobile belt conveyor is applicable to short-distance transport, loading and unloading of bulk material or items packed in sets, and is mainly used in places whose loading and unloading sites are in constant changes, for example: port, wharf, coal yard, warehouse, construction site, sand field, etc.

The transmission equipment is driven by electric drum, and is equipped with two kinds of travelling wheel: pneumatic tyre wheel and steel wheel. There are also two types of speed machine: elevation type and non-elevation type.

/

Main technical parameters


Belt width (mm)

500

650

800

1000

1200

1400

Belt velocity (m/s)

0.8~2.5

0.8~2.5

0.8~3.15

0.8~4

1.0~5

1.0~5

Transport distance (m)

5~30

Transport quantity (m3/h)

50~150

100~300

150~700

300~1500

500~2300

700~3800

Dip angle (°)

9°~22°
